Las chumaceras, las chumaceras de brida, los soportes de rodamientos y las chumaceras tensoras constan de una carcasa con un rodamiento montado en ella. Están disponibles en una variedad de materiales, configuraciones de montaje y diversas características de los rodamientos. Cada unidad de rodamiento, incluidos los rodamientos de inserción de la serie UC, SA, SB ER montados

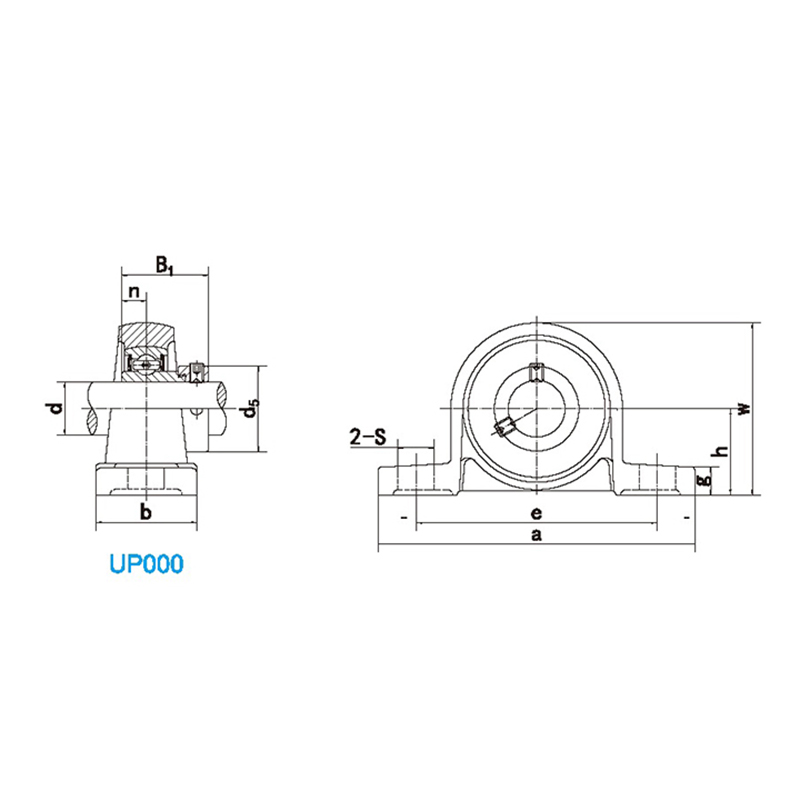

| Numero de unidad | Dimensiones (mm/in.) | Tamaño del perno mm/in. | Rodamiento No. | Cubierta No. | Peso (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | h | a | e | b | S | g | w | B1 | n | d5 | |||||
| SS-UP000 | 10 | 18 | 67 | 53 | 16 | 7 | 6 | 35 | 17.5 | 4 | 17 | M6 | SS-U000 | P000 | 0.08 |
| SS-UP000 | 10 | 23/32 | 2-41/64 | 2-3/32 | 5/8 | 9/32 | 15/64 | 1-3/8 | 0.689 | 0.157 | 43/64 | M6 | SS-U000 | P000 | 0.08 |
| SS-UP001 | 12 | 19 | 71 | 56 | 16 | 7 | 6 | 38 | 17.5 | 4 | 19 | M6 | SS-U001 | P001 | 0.09 |
| SS-UP001 | 12 | 3/4 | 2-51/64 | 2-13/64 | 5/8 | 9/32 | 15/64 | 1-1/2 | 0.689 | 0.157 | 3/4 | M6 | SS-U001 | P001 | 0.09 |
| SS-UP002 | 15 | 22 | 80 | 63 | 16 | 7 | 7 | 43 | 18.5 | 4.5 | 22 | M6 | SS-U002 | P002 | 0.13 |
| SS-UP002 | 15 | 7/8 | 3-5/32 | 2-31/64 | 5/8 | 9/32 | 9/32 | 1-11/16 | 0.728 | 0.177 | 65/64 | M6 | SS-U002 | P002 | 0.13 |
| SS-UP003 | 17 | 24 | 85 | 67 | 18 | 7 | 7 | 47 | 20.5 | 5 | 25 | M6 | SS-U003 | P003 | 0.16 |
| SS-UP003 | 17 | 15/16 | 3-11/32 | 2-41/64 | 23/32 | 9/32 | 9/32 | 1-27/37 | 0.807 | 0.197 | 31/32 | M6 | SS-U003 | P003 | 0.16 |
| SS-UP004 | 20 | 28 | 100 | 80 | 20 | 9 | 9 | 55 | 24.5 | 6 | 30 | M8 | SS-U004 | P04-5 | 0.23 |
| SS-UP004 | 20 | 1-3/32 | 3-15/16 | 3-5/32 | 25/32 | 23/64 | 23/64 | 2-11/64 | 0.965 | 0.236 | 1-3/16 | M8 | SS-U004 | P04-5 | 0.23 |
| SS-UP005 | 25 | 32 | 112 | 90 | 20 | 10 | 10 | 62 | 25.5 | 6.5 | 36 | M8 | SS-U005 | P05-6 | 0.29 |
| SS-UP005 | 25 | 1-17/64 | 4-13/32 | 3-35/64 | 25/32 | 25/64 | 25/64 | 2-7/16 | 1 | 0.265 | 1-27/64 | M8 | SS-U005 | P05-6 | 0.29 |
| SS-UP006 | 30 | 36 | 132 | 106 | 26 | 13 | 11 | 70 | 26.5 | 6.5 | 42 | M10 | SS-U006 | P06-7 | 0.45 |
| SS-UP006 | 30 | 1-27/64 | 5-13/64 | 4-11/64 | 1-1/32 | 33/64 | 7/16 | 2-3/4 | 1.04 | 0.256 | 1-21/32 | M10 | SS-U006 | P06-7 | 0.45 |
Estructura compacta, sellado perfecto y conveniente instalación y desmontaje, es universal e intercambiable, tiene un rango moderado de autoalineación.
Rodamientos utilizados en textil, agricultura, comida, teñido y acabado, plástico, construcción, minería, ingeniería, equipos de química y otras industrias.
