Adapater Sleeves

Manguitos de fijación para rodamiento

Se utiliza para fijar rodamiento de agujero cónico en eje liso (tolerância máxima h10), sin encosto.

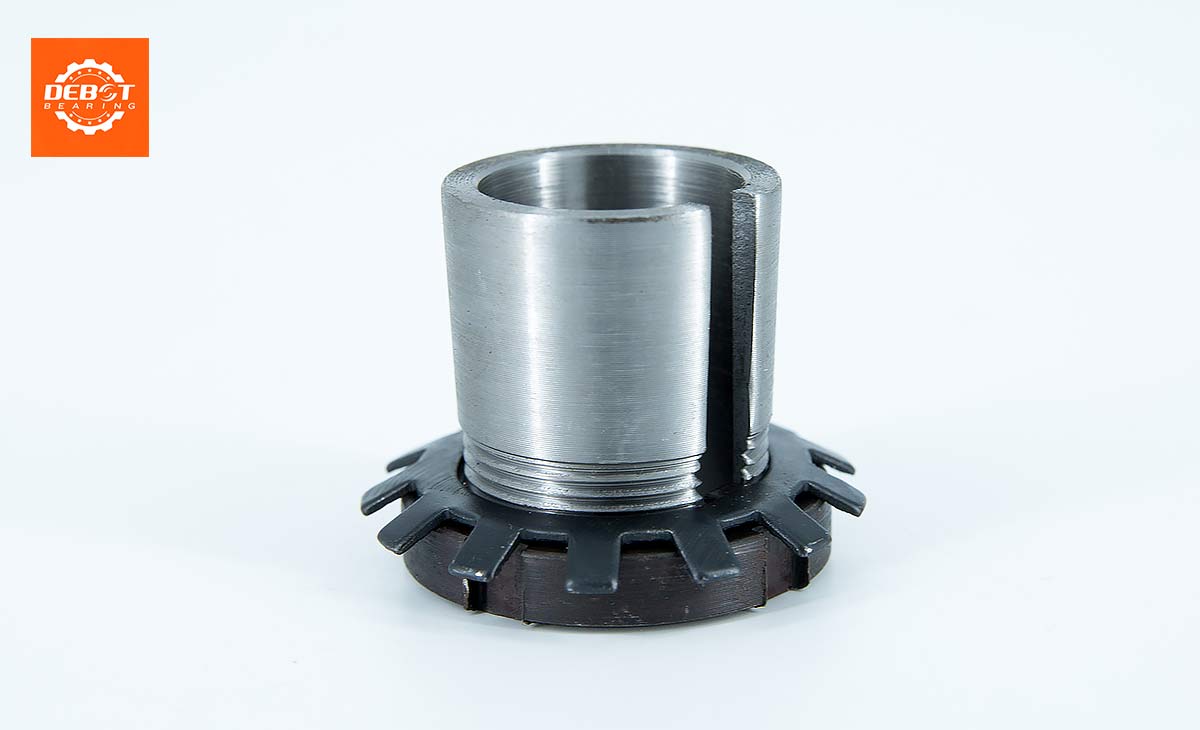

Se compone de 3 partes: el manguito, una tuerca y una arandela de traba o clip MS. Son siempre suministrados con este conjunto completo.

Material:

Nodular BGFN 01,02,03 (GGG50 de base), que es la opción con la más alta resistencia a la tracción. Opcional en acero al carbono.



Dimensiones (in) Dimensiones Peso (kg) Designación Con contratuerca Manguito adaptador de bloqueo Tuerca de bloqueo Juego de bloqueo Tuercas hidráulicas adecuadas
d1 d1 d d3 B1 B2 G
3/4 19.050 25 38 29 8 M25×1.5 0.080 HE305 KM5 MB5 -
3/4 19.050 25 38 29 10.5 M25×1.5 0.088 HE305E KMFE5 - -
3/4 19.050 25 38 35 8 M25×1.5 0.090 HE2305 KM5 MB5 -
7/8 22.225 30 45 27 8 M30×1.5 0.11 HS206 KM6 MB6 -
7/8 22.225 30 45 31 8 M30×1.5 0.12 HS306 KM6 MB6 -
1 5/6 23.813 30 45 27 8 M30×1.5 0.10 HA206 KM6 MB6 -
1 5/6 23.813 30 45 31 8 M30×1.5 0.12 HA306 KM6 MB6 -
1 5/6 23.813 30 45 31 10.5 M30×1.5 0.13 HA306E KMFE6 - -
1 5/6 23.813 30 45 38 8 M30×1.5 0.13 HA2306 KM6 MB6 -
1 25.400 30 45 27 8 M30×1.5 0.080 HE206 KM6 MB6 -
1 25.400 30 45 31 8 M30×1.5 0.10 HE306 KM6 MB6 -
1 25.400 30 45 31 10.5 M30×1.5 0.11 HE306E KMFE6 - -
1 25.400 30 45 38 8 M30×1.5 0.11 HE2306 KM6 MB6 -
1 1/8 28.575 35 52 29 9 M35×1.5 0.14 HS207 KM7 MB7 -
1 1/8 28.575 35 52 35 9 M35×1.5 0.16 HS307 KM7 MB7 -
1 1/8 28.575 35 52 35 11.5 M35×1.5 0.17 HS307E KMFE7 - -
1 3/16 30.163 35 52 29 9 M35×1.5 0.12 HA207 KM7 MB7 -
1 3/16 30.163 35 52 35 9 M35×1.5 0.14 HA307 KM7 MB7 -
1 3/16 30.163 35 52 35 11.5 M35×1.5 0.15 HA307E KMFE7 - -
1 3/16 30.163 35 52 43 9 M35×1.5 0.16 HA2307 KM7 MB7 -
1 1/4 31.750 40 58 31 10 M40×1.5 0.19 HE208 KM8 MB8 -
1 1/4 31.750 40 58 36 10 M40×1.5 0.22 HE308 KM8 MB8 -
1 1/4 31.750 40 58 36 13 M40×1.5 0.19 HE308E KMFE8 - -
1 1/4 31.750 40 58 46 10 M40×1.5 0.28 HE2308 KM8 MB8 -
1 3/8 34.925 40 58 31 10 M40×1.5 0.16 HS208 KM8 MB8 -
1 3/8 34.925 40 58 36 10 M40×1.5 0.17 HS308 KM8 MB8 -
1 7/16 36.512 45 65 33 11 M45×1.5 0.26 HA209 KM9 MB9 -
1 7/16 36.512 45 65 39 11 M45×1.5 0.29 HA309 KM9 MB9 -
1 7/16 36.512 45 65 39 13 M45×1.5 0.31 HA309E KMFE9 - -
1 7/16 36.512 45 65 50 11 M45×1.5 0.35 HA2309 KM9 MB9 -
1 1/2 38.100 45 65 33 11 M45x1.5 0.20 HE209 KM9 MB9 -
1 1/2 38.100 45 65 39 11 M45x1.5 0.24 HE309 KM9 MB9 -
1 1/2 38.100 45 65 39 13 M45x1.5 0.26 HE309E KMFE9 - -
1 1/2 38.100 45 65 50 11 M45x1.5 0.31 HE2309 KM9 MB9 -
1 5/8 41.275 50 70 35 12 M50x1.5 0.31 HS210 KM10 MB10 HMV10E
1 5/8 41.275 50 70 42 12 M50x1.5 0.36 HS310 KM10 MB10 HMV10E
1 5/8 41.275 50 70 55 12 M50x1.5 0.40 HS2310 KM10 MB10 HMV10E
1 11/16 42.863 50 70 35 12 M50x1.5 0.28 HA210 KM10 MB10 HMV10E
1 11/16 42.863 50 70 42 12 M50x1.5 0.32 HA310 KM10 MB10 HMV10E
1 11/16 42.863 50 70 42 14 M50x1.5 0.32 HA310E KMFE10 - HMV10E
1 11/16 42.863 50 70 55 12 M50x1.5 0.40 HA2310 KM10 MB10 HMV10E
1 3/4 44.450 50 70 35 12 M50x1.5 0.26 HE210 KM10 MB10 HMV10E
1 3/4 44.450 50 70 42 12 M50x1.5 0.29 HE310 KM10 MB10 HMV10E
1 3/4 44.450 50 70 42 14 M50x1.5 0.29 HE310E KMFE10 - HMV10E
1 3/4 44.450 50 70 55 12 M50x1.5 0.36 HE2310 KM10 MB10 HMV10E
1 7/8 47.625 55 75 37 12.5 M55x2 0.33 HS211 KM11 MB11 HMV11E
1 7/8 47.625 55 75 45 12.5 M55x2 0.38 HS311 KM11 MB11 HMV11E
1 15/16 49.213 55 75 37 12.5 M55x2 0.30 HA211 KM11 MB11 HMV11E
1 15/16 49.213 55 75 45 12.5 M55x2 0.34 HA311 KM11 MB11 HMV11E
1 15/16 49.213 55 75 45 14 M55x2 0.35 HA311E KMFE11 - HMV11E


Para ejes métricos Para ejes en pulgadas
17-75mm ¾-2in
80-180mm 2¼-4in
200-450mm 4¼-7
470-1000mm
