Chumaceras o soportes de rodillos cónicos

Inicio
Productos
Chumaceras en acero inoxidable

Chumaceras en acero inoxidable

Las chumaceras, las chumaceras de brida, los soportes de rodamientos y las chumaceras tensoras constan de una carcasa con un rodamiento montado en ella. Están disponibles en una variedad de materiales, configuraciones de montaje y diversas características de los rodamientos. Cada unidad de rodamiento, incluidos los rodamientos de inserción de la serie UC, SA, SB ER montados

Parámetro
Características
Descargar
Vídeo

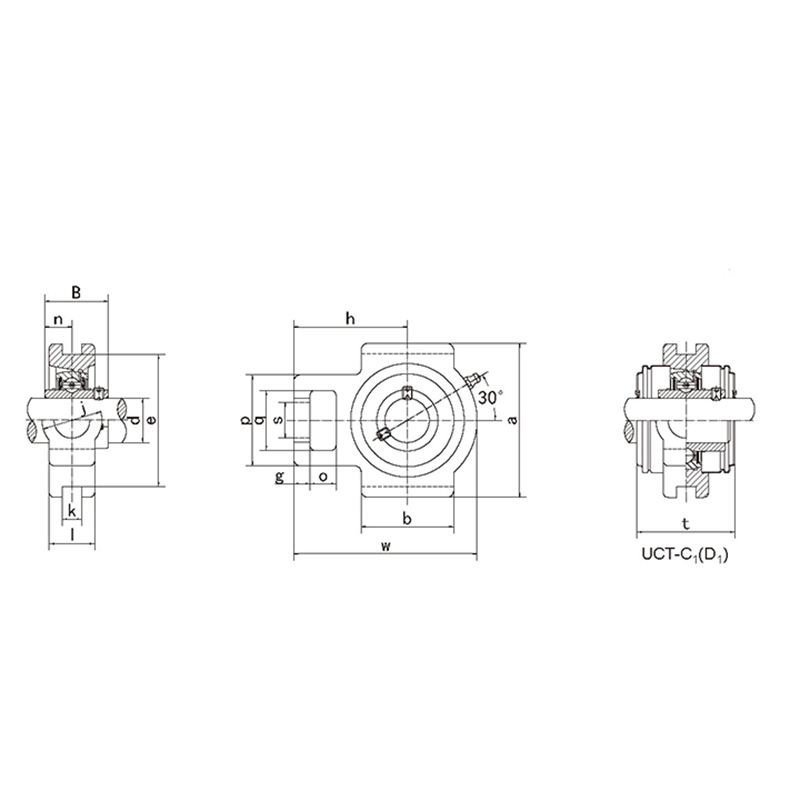

Numero de unidad	Dimensiones ( mm/in. )																	Rodamiento No.	Cubierta No.	Peso (kg)
Numero de unidad	d	o	g	p	q	s	b	k	e	a	w	j	l	h	t	B	n	Rodamiento No.	Cubierta No.	Peso (kg)
SS-UCT201	12	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	SS-UC201	T201	0.77
SS-UCT 201-8	1/2	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC201-8	T201	0.76
SS-UCT202	15	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	SS-UC202	T202	0.76
SS-UCT 202-9	9/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC202-9	T202	0.76
SS-UCT 202-10	5/8	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC202-10	T202	0.76
SS-UCT203	17	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	SS-UC203	T203	0.75
SS-UCT 203-11	11/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC203-11	T203	0.74
SS-UCT204	20	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	SS-UC204	T204	0.73
SS-UCT 204-12	3/4	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.5	SS-UC204-12	T204	0.73
SS-UCT205	25	16	10	51	32	19	51	12	76	89	97	32	24	62	48	34.1	14.3	SS-UC205	T205	0.8
SS-UCT 205-13	13/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	SS-UC205-13	T205	0.84
SS-UCT 205-14	7/8	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	SS-UC205-14	T205	0.83
SS-UCT 205-15	15/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	SS-UC205-15	T205	0.81
SS-UCT 205-16	1	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	SS-UC205-16	T205	0.8
SS-UCT206	30	16	10	56	37	22	57	12	89	102	113	37	28	70	53	38.1	15.9	SS-UC206	T206	1.22
SS-UCT 206-17	1-1/16	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5	0.626	SS-UC206-17	T206	1.23
SS-UCT 206-18	1-1/8	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5	0.626	SS-UC206-18	T206	1.24
SS-UCT 206-19	1-3/16	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5	0.626	SS-UC206-19	T206	1.22
SS-UCT 206-20	1-1/4	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5	0.626	SS-UC206-20	T206	1.21
SS-UCT207	35	16	13	64	37	22	64	12	89	102	129	37	30	78	59.5	42.9	17.5	SS-UC207	T207	1.57
SS-UCT 207-20	1-1/4	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.689	0.689	SS-UC207-20	T207	1.63
SS-UCT 207-21	1-5/16	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.689	0.689	SS-UC207-21	T207	1.6
SS-UCT 207-22	1-3/8	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.689	0.689	SS-UC207-22	T207	1.57
SS-UCT 207-23	1-7/16	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.689	0.689	SS-UC207-23	T207	1.54
SS-UCT208	40	19	16	83	49	29	83	16	102	114	144	49	33	89	69	49.2	19	SS-UC208	T208	2.31
SS-UCT 208-24	1-1/2	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-19/64	3-1/2	2-23/32	1.937	0.748	SS-UC208-24	T208	2.35
SS-UCT 208-25	1-9/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-19/64	3-1/2	2-23/32	1.937	0.748	SS-UC208-25	T208	2.32
SS-UCT209	45	19	16	83	49	29	83	16	102	117	144	49	35	87	69	49.2	19	SS-UC209	T209	2.34
SS-UCT 209-26	1-5/8	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2-23/32	1.937	0.748	SS-UC209-26	T209	2.44
SS-UCT 209-27	1-11/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2-23/32	1.937	0.748	SS-UC209-27	T209	2.4
SS-UCT 209-28	1-3/4	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2-23/32	1.937	0.748	SS-UC209-28	T209	2.36
SS-UCT210	50	19	16	83	49	29	86	16	102	117	149	49	37	90	74.5	51.6	19	SS-UC210	T210	2.47
SS-UCT 210-29	1-13/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	SS-UC210-29	T210	2.59
SS-UCT 210-30	1-7/8	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	SS-UC210-30	T210	2.54
SS-UCT 210-31	1-15/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	SS-UC210-31	T210	2.49
SS-UCT 210-32	2	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	SS-UC210-32	T210	2.45
SS-UCT211	55	25	19	102	64	35	95	22	130	146	171	64	38	106	76	55.6	22.2	SS-UC211	T211	3.74
SS-UCT 211-32	2	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.189	0.874	SS-UC211-32	T211	3.89
SS-UCT 211-33	2-1/16	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.189	0.874	SS-UC211-33	T211	3.83
SS-UCT 211-34	2-1/8	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.189	0.874	SS-UC211-34	T211	3.79
SS-UCT 211-35	2-3/16	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.189	0.874	SS-UC211-35	T211	3.72
SS-UCT212	60	32	19	102	64	35	102	22	130	146	194	64	42	119	89	65.1	25.4	SS-UC212	T212	4.58
SS-UCT 212-36	2-1/4	1-17/64	3/4	4-1/64	2-1/32	1-3/8	4-1/64	55/64	5-1/8	5-3/4	7-41/64	2-33/64	1-21/32	4-11/16	3-1/2	2.563	1	SS-UC212-36	T212	4.71
SS-UCT 212-37	2-5/16	1-17/64	3/4	4-1/64	2-1/32	1-3/8	4-1/64	55/64	5-1/8	5-3/4	7-41/64	2-33/64	1-21/32	4-11/16	3-1/2	2.563	1	SS-UC212-37	T212	4.63
SS-UCT 212-38	2-3/8	1-17/64	3/4	4-1/64	2-1/32	1-3/8	4-1/64	55/64	5-1/8	5-3/4	7-41/64	2-33/64	1-21/32	4-11/16	3-1/2	2.563	1	SS-UC212-38	T212	4.56
SS-UCT 212-39	2-7/16	1-17/64	3/4	4-1/64	2-1/32	1-3/8	4-1/64	55/64	5-1/8	5-3/4	7-41/64	2-33/64	1-21/32	4-11/16	3-1/2	2.563	1	SS-UC212-39	T212	4.49
SS-UCT213	65	32	21	111	70	41	121	26	151	167	224	70	44	137	89	65.1	25.4	SS-UC213	T213	6.6
SS-UCT 213-40	2-1/2	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-23/32	5-25/64	3-1/2	2.563	1	SS-UC213-40	T213	6.69
SS-UCT 213-41	2-9/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-23/32	5-25/64	3-1/2	2.563	1	SS-UC213-41	T213	6.6
SS-UCT214	70	32	21	111	70	41	121	26	151	167	224	70	46	137	98	74.6	30.2	SS-UC214	T214	6.74
SS-UCT 214-42	2-5/8	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-13/16	5-25/64	3-55/64	2.937	1.189	SS-UC214-42	T214	6.95
SS-UCT 214-43	2-11/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-13/16	5-25/64	3-55/64	2.937	1.189	SS-UC214-43	T214	6.85
SS-UCT 214-44	2-3/4	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-13/16	5-25/64	3-55/64	2.937	1.189	SS-UC214-44	T214	6.75
SS-UCT215	75	32	21	111	70	41	121	26	151	167	232	70	48	140	99	77.8	33.3	SS-UC215	T215	7.19
SS-UCT 215-45	2-13/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	9-9/64	2-3/4	1-57/64	5-33/64	3-57/64	3.063	1.311	SS-UC215-45	T215	7.19
SS-UCT 215-46	2-7/8	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	9-9/64	2-3/4	1-57/64	5-33/64	3-57/64	3.063	1.311	SS-UC215-46	T215	7.44
SS-UCT 215-47	2-15/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	9-9/64	2-3/4	1-57/64	5-33/64	3-57/64	3.063	1.311	SS-UC215-47	T215	7.33
SS-UCT 215-48	3	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	9-9/64	2-3/4	1-57/64	5-33/64	3-57/64	3.063	1.311	SS-UC215-48	T215	7.13
SS-UCT216	80	32	21	111	70	41	121	26	165	184	235	70	51	140	109	82.6	33.3	SS-UC216	T216	8.08
SS-UCT 216-49	3-1/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	6-1/2	7-1/4	9-1/4	2-3/4	2	5-33/64	4-19/64	3.252	1.311	SS-UC216-49	T216	8.26
SS-UCT 216-50	3-1/8	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	6-1/2	7-1/4	9-1/4	2-3/4	2	5-33/64	4-19/64	3.252	1.311	SS-UC216-50	T216	8.13
SS-UCT 216-51	3-3/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	6-1/2	7-1/4	9-1/4	2-3/4	2	5-33/64	4-19/64	3.252	1.311	SS-UC216-51	T216	8
SS-UCT217	85	38	29	124	73	48	157	30	173	198	260	73	54	162	113.2	85.7	34.1	SS-UC217	T217	10.66
SS-UCT 217-52	3-1/4	1-1/2	1-9/64	4-7/8	2-7/8	1-57/64	6-3/16	1-3/16	6-13/16	7-51/64	10-15/64	2-7/8	2-1/8	6-3/8	4-29/64	3.374	1.343	SS-UC217-52	T217	10.78
SS-UCT 217-53	3-5/16	1-1/2	1-9/64	4-7/8	2-7/8	1-57/64	6-3/16	1-3/16	6-13/16	7-51/64	10-15/64	2-7/8	2-1/8	6-3/8	4-29/64	3.374	1.343	SS-UC217-53	T217	10.74
SS-UCT 217-55	3-7/16	1-1/2	1-9/64	4-7/8	2-7/8	1-57/64	6-3/16	1-3/16	6-13/16	7-51/64	10-15/64	2-7/8	2-1/8	6-3/8	4-29/64	3.374	1.343	SS-UC217-55	T217	10.45
SS-UCT218	90	40	30	130	80	48	140	30	190	215	275	80	55	170	123	96	39.7	SS-UC218	T218	12.19
SS-UCT 218-56	3-1/2	1-37/64	1-3/16	5-1/8	3-5/32	1-57/64	5-35/64	1-3/16	7-31/64	8-15/32	10-53/64	3-5/32	2-11/64	6-11/16	4-27/32	3.7795	1.563	SS-UC218-56	T218	12.3

Características:

Estructura compacta, sellado perfecto y conveniente instalación y desmontaje, es universal e intercambiable, tiene un rango moderado de autoalineación.

Aplicaciones en las siguientes industrias:

Rodamientos utilizados en textil, agricultura, comida, teñido y acabado, plástico, construcción, minería, ingeniería, equipos de química y otras industrias.
