Chumaceras en acero inoxidable

Las chumaceras, las chumaceras de brida, los soportes de rodamientos y las chumaceras tensoras constan de una carcasa con un rodamiento montado en ella. Están disponibles en una variedad de materiales, configuraciones de montaje y diversas características de los rodamientos. Cada unidad de rodamiento, incluidos los rodamientos de inserción de la serie UC, SA, SB ER montados

  • Parámetro
  • Características
  • Descargar
  • Vídeo

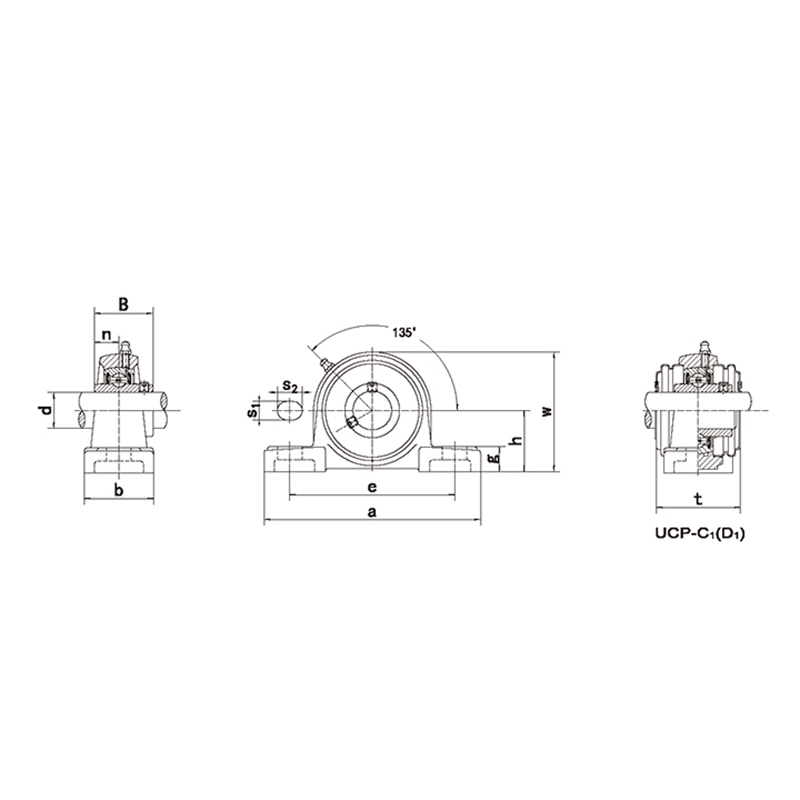

Numero de unidad Dimensiones ( mm/in. ) Tamaño del perno mm/in. Rodamiento No. Cubierta No. Peso (kg)
dhaebs1s2gwtBn
SS-UCP201 12 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10 SS-UC201 P201 0.65
SS-UCP 201-8 1/2 1-3/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-7/16 1-3/4 1.2205 0.5 3/8 SS-UC201-8 P201 0.64
SS-UCP202 15 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10 SS-UC202 P202 0.64
SS-UCP 202-9 9/16 1-3/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-7/16 1-3/4 1.2205 0.5 3/8 SS-UC202-9 P202 0.64
SS-UCP 202-10 5/8 1-3/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-7/16 1-3/4 1.2205 0.5 3/8 SS-UC202-10 P202 0.64
SS-UCP203 17 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10 SS-UC203 P203 0.63
SS-UCP 203-11 11/16 1-3/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-7/16 1-3/4 1.2205 0.5 3/8 SS-UC203-11 P203 0.62
SS-UCP204 20 33.3 127 95 38 13 19 14 65 44.5 31 12.7 M10 SS-UC204 P204 0.64
SS-UCP 204-12 3/4 1-5/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-9/16 1-3/4 1.2205 0.5 3/8 SS-UC204-12 P204 0.64
SS-UCP205 25 36.5 140 105 38 13 19 15 71 48 34.1 14.3 M10 SS-UC205 P205 0.76
SS-UCP 205-13 13/16 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1-57/64 1.3425 0.563 3/8 SS-UC205-13 P205 0.8
SS-UCP 205-14 7/8 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1-57/64 1.3425 0.563 3/8 SS-UC205-14 P205 0.79
SS-UCP 205-15 15/16 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1-57/64 1.3425 0.563 3/8 SS-UC205-15 P205 0.77
SS-UCP 205-16 1 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1-57/64 1.3425 0.563 3/8 SS-UC205-16 P205 0.76
SS-UCP206 30 42.9 160 121 44 17 20 17 84 53 38.1 15.9 M14 SS-UC206 P206 1.2
SS-UCP 206-17 1-1/16 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 2-5/64 1.5 0.626 1/2 SS-UC206-17 P206 1.21
SS-UCP 206-18 1-1/8 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 2-5/64 1.5 0.626 1/2 SS-UC206-18 P206 1.22
SS-UCP 206-19 1-3/16 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 2-5/64 1.5 0.626 1/2 SS-UC206-19 P206 1.2
SS-UCP 206-20 1-1/4 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 2-5/64 1.5 0.626 1/2 SS-UC206-20 P206 1.19
SS-UCP207 35 47.6 167 127 48 17 20 18 93 59.5 42.9 17.5 M14 SS-UC207 P207 1.46
SS-UCP 207-20 1-1/4 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 2-11/32 1.689 0.689 1/2 SS-UC207-20 P207 1.53
SS-UCP 207-21 1-5/16 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 2-11/32 1.689 0.689 1/2 SS-UC207-21 P207 1.5
SS-UCP 207-22 1-3/8 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 2-11/32 1.689 0.689 1/2 SS-UC207-22 P207 1.47
SS-UCP 207-23 1-7/16 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 2-11/32 1.689 0.689 1/2 SS-UC207-23 P207 1.44
SS-UCP208 40 49.2 184 137 54 17 20 18 100 69 49.2 19 M14 SS-UC208 P208 1.86
SS-UCP 208-24 1-1/2 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 2-23/32 1.937 0.748 1/2 SS-UC208-24 P208 1.9
SS-UCP 208-25 1-9/16 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 2-23/32 1.937 0.748 1/2 SS-UC208-25 P208 1.87
SS-UCP209 45 54 190 146 54 17 20 20 106 69 49.2 19 M14 SS-UC209 P209 2.06
SS-UCP 209-26 1-5/8 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2-23/32 1.937 0.748 1/2 SS-UC209-26 P209 2.16
SS-UCP 209-27 1-11/16 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2-23/32 1.937 0.748 1/2 SS-UC209-27 P209 2.12
SS-UCP 209-28 1-3/4 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2-23/32 1.937 0.748 1/2 SS-UC209-28 P209 2.08
SS-UCP210 50 57.2 206 159 60 20 23 21 113 74.5 51.6 19 M16 SS-UC210 P210 2.61
SS-UCP 210-29 1-13/16 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2-15/16 2.0315 0.748 5/8 SS-UC210-29 P210 2.73
SS-UCP 210-30 1-7/8 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2-15/16 2.0315 0.748 5/8 SS-UC210-30 P210 2.68
SS-UCP 210-31 1-15/16 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2-15/16 2.0315 0.748 5/8 SS-UC210-31 P210 2.63
SS-UCP 210-32 2 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2-15/16 2.0315 0.748 5/8 SS-UC210-32 P210 2.59
SS-UCP211 55 63.5 219 171 60 20 23 23 125 76 55.6 22.2 M16 SS-UC211 P211 3.23
SS-UCP 211-32 2 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 3 2.189 0.874 5/8 SS-UC211-32 P211 3.38
SS-UCP 211-33 2-1/16 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 3 2.189 0.874 5/8 SS-UC211-33 P211 3.32
SS-UCP 211-34 2-1/8 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 3 2.189 0.874 5/8 SS-UC211-34 P211 3.28
SS-UCP 211-35 2-3/16 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 3 2.189 0.874 5/8 SS-UC211-35 P211 3.21
SS-UCP212 60 69.8 241 184 70 20 23 25 138 89 65.1 25.4 M16 SS-UC212 P212 4.4
SS-UCP 212-36 2-1/4 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 3-1/2 2.563 1 5/8 SS-UC212-36 P212 4.57
SS-UCP 212-37 2-5/16 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 3-1/2 2.563 1 5/8 SS-UC212-37 P212 4.49
SS-UCP 212-38 2-3/8 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 3-1/2 2.563 1 5/8 SS-UC212-38 P212 4.42
SS-UCP 212-39 2-7/16 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 3-1/2 2.563 1 5/8 SS-UC212-39 P212 4.35
SS-UCP213 65 76.2 265 203 70 25 28 27 150 89 65.1 25.4 M20 SS-UC213 P213 5.35
SS-UCP 213-40 2-1/2 3 10-7/16 8 2-3/4 63/64 1-3/32 1-1/16 5-29/32 3-1/2 2.563 1 3/4 SS-UC213-40 P213 5.44
SS-UCP 213-41 2-9/16 3 10-7/16 8 2-3/4 63/64 1-3/32 1-1/16 5-29/32 3-1/2 2.563 1 3/4 SS-UC213-41 P213 5.35
SS-UCP214 70 79.4 266 210 72 25 28 27 156 98 74.6 30.2 M20 SS-UC214 P214 5.86
SS-UCP 214-42 2-5/8 3-1/8 10-15/32 8-17/64 2-27/32 63/64 1-3/32 1-1/16 6-9/64 3-55/64 2.937 1.189 3/4 SS-UC214-42 P214 6.07
SS-UCP 214-43 2-11/16 3-1/8 10-15/32 8-17/64 2-27/32 63/64 1-3/32 1-1/16 6-9/64 3-55/64 2.937 1.189 3/4 SS-UC214-43 P214 5.97
SS-UCP 214-44 2-3/4 3-1/8 10-15/32 8-17/64 2-27/32 63/64 1-3/32 1-1/16 6-9/64 3-55/64 2.937 1.189 3/4 SS-UC214-44 P214 5.87
SS-UCP215 75 82.6 275 217 74 25 28 28 162 99 77.8 33.3 M20 SS-UC215 P215 6.45
SS-UCP 215-45 2-13/16 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3-57/64 3.063 1.311 3/4 SS-UC215-45 P215 6.45
SS-UCP 215-46 2-7/8 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3-57/64 3.063 1.311 3/4 SS-UC215-46 P215 6.7
SS-UCP 215-47 2-15/16 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3-57/64 3.063 1.311 3/4 SS-UC215-47 P215 6.59
SS-UCP 215-48 3 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3-57/64 3.063 1.311 3/4 SS-UC215-48 P215 6.39
SS-UCP216 80 88.9 292 232 78 25 28 30 174 109 82.6 33.3 M20 SS-UC216 P216 7.86
SS-UCP 216-49 3-1/16 3-1/2 11-1/2 9-1/8 3-1/16 63/64 1-3/32 1-3/16 6-27/32 4-19/64 3.252 1.311 3/4 SS-UC216-49 P216 8.04
SS-UCP 216-50 3-1/8 3-1/2 11-1/2 9-1/8 3-1/16 63/64 1-3/32 1-3/16 6-27/32 4-19/64 3.252 1.311 3/4 SS-UC216-50 P216 7.91
SS-UCP 216-51 3-1/16 3-1/2 11-1/2 9-1/8 3-1/16 63/64 1-3/32 1-3/16 6-27/32 4-19/64 3.252 1.311 3/4 SS-UC216-51 P216 7.78
SS-UCP217 85 95.2 310 247 83 25 28 32 185 113.2 85.7 34.1 M20 SS-UC217 P217 9.56
SS-UCP 217-52 3-1/4 3-3/4 12-13/64 9-23/32 3-17/64 63/64 1-3/32 1-1/4 7-9/32 4-29/64 3.374 1.343 3/4 SS-UC217-52 P217 9.68
SS-UCP 217-53 3-5/16 3-3/4 12-13/64 9-23/32 3-17/64 63/64 1-3/32 1-1/4 7-9/32 4-29/64 3.374 1.343 3/4 SS-UC217-53 P217 9.64
SS-UCP 217-55 3-7/16 3-3/4 12-13/64 9-23/32 3-17/64 63/64 1-3/32 1-1/4 7-9/32 4-29/64 3.374 1.343 3/4 SS-UC217-55 P217 9.35
SS-UCP218 90 101.6 327 262 88 27 30 33 198 123 96 39.7 M22 SS-UC218 P218 11.59
SS-UCP 218-56 3-1/2 4 12-7/8 10-5/16 3-15/32 1-1/16 1-3/16 1-19/64 7-51/64 4-27/32 3.7795 1.563 7/8 SS-UC218-56 P218 11.7
SS-UCP220 100 115 380 308 95 30 36 40 225 108 42 M24 SS-UC220 P220 16
SS-UCP 220-64 4 4-17/32 14-61/64 12-1/8 3-47/64 1-3/16 1-27/64 1-37/64 8-55/64 4.252 1.6535 15/16 SS-UC220-64 P220 16
Características:

Estructura compacta, sellado perfecto y conveniente instalación y desmontaje, es universal e intercambiable, tiene un rango moderado de autoalineación.

Aplicaciones en las siguientes industrias:

Rodamientos utilizados en textil, agricultura, comida, teñido y acabado, plástico, construcción, minería, ingeniería, equipos de química y otras industrias.
