Chumaceras en acero inoxidable

Chumaceras en acero inoxidable

Las chumaceras, las chumaceras de brida, los soportes de rodamientos y las chumaceras tensoras constan de una carcasa con un rodamiento montado en ella. Están disponibles en una variedad de materiales, configuraciones de montaje y diversas características de los rodamientos. Cada unidad de rodamiento, incluidos los rodamientos de inserción de la serie UC, SA, SB ER montados

Parámetro
Características
Descargar
Vídeo

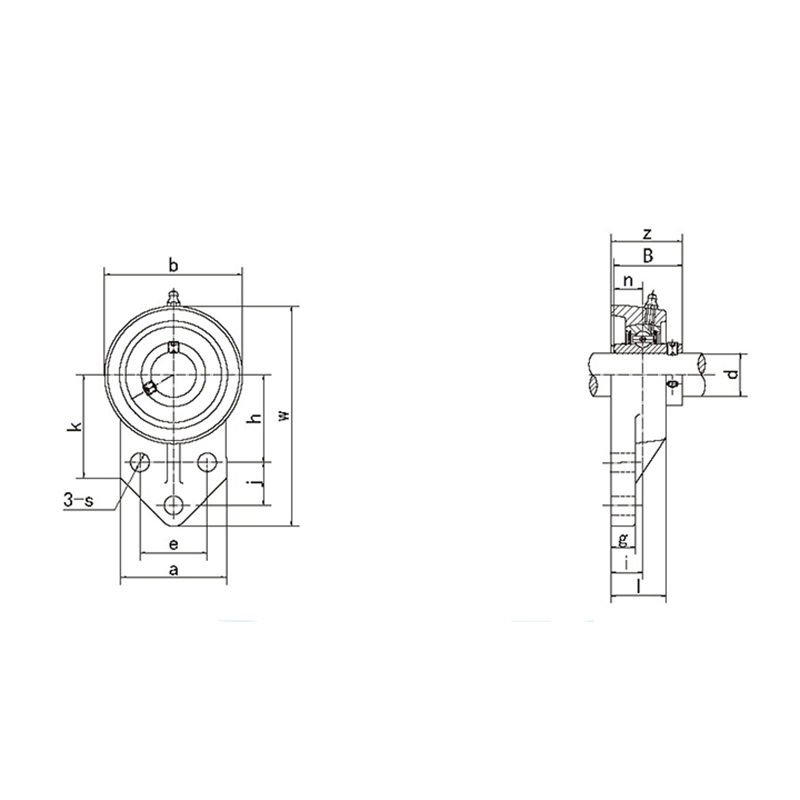

Unit No.	Dimensiones (mm/in)															Tamaño del perno mm/in	Rodamiento No.	Cubierta No.	Peso(kg)
Unit No.	d	w	b	k	a	l	s	g	h	j	e	i	z	B	n	Tamaño del perno mm/in	Rodamiento No.	Cubierta No.	Peso(kg)
SS-UCFB201	12	110	62	52	52	25.5	10	13	42	27	32	15	33.3	31	12.7	M8	SS-UC201	FB201	0.587
SS-UCFB 201-8	1/2	4-11/32	2-7/16	2-1/16	2-1/16	1	25/64	1/2	1-21/32	1-1/16	1-17/64	19/32	1-5/16	1.2205	0.5	5/16	SS-UC201-8	FB201	0.577
SS-UCFB202	15	4-11/32	2-7/16	2-1/16	2-1/16	1	25/64	1/2	1-21/32	1-1/16	1-17/64	19/32	1-5/16	1.2205	0.5	5/16	SS-UC202	FB202	0.577
SS-UCFB 202-9	9/16	4-11/32	2-7/16	2-1/16	2-1/16	1	25/64	1/2	1-21/32	1-1/16	1-17/64	19/32	1-5/16	1.2205	0.5	5/16	SS-UC202-9	FB202	0.577
SS-UCFB 202-10	5/8	4-11/32	2-7/16	2-1/16	2-1/16	1	25/64	1/2	1-21/32	1-1/16	1-17/64	19/32	1-5/16	1.2205	0.5	5/16	SS-UC202-10	FB202	0.577
SS-UCFB203	17	4-11/32	2-7/16	2-1/16	2-1/16	1	25/64	1/2	1-21/32	1-1/16	1-17/64	19/32	1-5/16	1.2205	0.5	5/16	SS-UC203	FB203	0.567
SS-UCFB 203-11	11/16	4-11/32	2-7/16	2-1/16	2-1/16	1	25/64	1/2	1-21/32	1-1/16	1-17/64	19/32	1-5/16	1.2205	0.5	5/16	SS-UC203-11	FB203	0.557
SS-UCFB204	20	4-11/32	2-7/16	2-1/16	2-1/16	1	25/64	1/2	1-21/32	1-1/16	1-17/64	19/32	1-5/16	1.2205	0.5	5/16	SS-UC204	FB204	0.546
SS-UCFB 204-12	3/4	4-11/32	2-7/16	2-1/16	2-1/16	1	25/64	1/2	1-21/32	1-1/16	1-17/64	19/32	1-5/16	1.2205	0.5	5/16	SS-UC204-12	FB204	0.546
SS-UCFB205	25	116	68	52	56	27	10	13	45	27	34	16	35.8	34.1	14.3	M8	SS-UC205	FB205	0.637
SS-UCFB 205-13	13/16	4-9/16	2-11/16	2-1/16	2-7/32	1-1/16	25/64	1/2	1-49/64	1-1/16	1-11/32	5/8	1-13/32	1.3425	0.563	5/16	SS-UC205-13	FB205	0.674
SS-UCFB 205-14	7/8	4-9/16	2-11/16	2-1/16	2-7/32	1-1/16	25/64	1/2	1-49/64	1-1/16	1-11/32	5/8	1-13/32	1.3425	0.563	5/16	SS-UC205-14	FB205	0.664
SS-UCFB 205-15	15/16	4-9/16	2-11/16	2-1/16	2-7/32	1-1/16	25/64	1/2	1-49/64	1-1/16	1-11/32	5/8	1-13/32	1.3425	0.563	5/16	SS-UC205-15	FB205	0.644
SS-UCFB 205-16	1	4-9/16	2-11/16	2-1/16	2-7/32	1-1/16	25/64	1/2	1-49/64	1-1/16	1-11/32	5/8	1-13/32	1.3425	0.563	5/16	SS-UC205-16	FB205	0.634
SS-UCFB206	30	130	78	55	65	31	10	13	50	29	40	18	40.2	38.1	15.9	M8	SS-UC206	FB206	0.879
SS-UCFB 206-17	1-1/16	5-1/8	3-1/16	2-5/32	2-9/16	1-7/32	25/64	1/2	1-31/32	1-9/64	1-37/64	45/64	1-19/32	1.5	0.626	5/16	SS-UC206-17	FB206	0.889
SS-UCFB 206-18	1-1/8	5-1/8	3-1/16	2-5/32	2-9/16	1-7/32	25/64	1/2	1-31/32	1-9/64	1-37/64	45/64	1-19/32	1.5	0.626	5/16	SS-UC206-18	FB206	0.899
SS-UCFB 206-19	1-3/16	5-1/8	3-1/16	2-5/32	2-9/16	1-7/32	25/64	1/2	1-31/32	1-9/64	1-37/64	45/64	1-19/32	1.5	0.626	5/16	SS-UC206-19	FB206	0.879
SS-UCFB 206-20	1-1/4	5-1/8	3-1/16	2-5/32	2-9/16	1-7/32	25/64	1/2	1-31/32	1-9/64	1-37/64	45/64	1-19/32	1.5	0.626	5/16	SS-UC206-20	FB206	0.869
SS-UCFB207	35	144	90	62	70	34	10	15	55	32	46	19	44.4	42.9	17.5	M8	SS-UC207	FB207	1.241
SS-UCFB 207-20	1-1/4	5-21/32	3-35/64	2-7/16	2-3/4	1-11/32	25/64	19/32	2-11/64	1-17/64	1-13/16	3/4	1-3/4	1.689	0.689	5/16	SS-UC207-20	FB207	1.306
SS-UCFB 207-21	1-5/16	5-21/32	3-35/64	2-7/16	2-3/4	1-11/32	25/64	19/32	2-11/64	1-17/64	1-13/16	3/4	1-3/4	1.689	0.689	5/16	SS-UC207-21	FB207	1.276
SS-UCFB 207-22	1-3/8	5-21/32	3-35/64	2-7/16	2-3/4	1-11/32	25/64	19/32	2-11/64	1-17/64	1-13/16	3/4	1-3/4	1.689	0.689	5/16	SS-UC207-22	FB207	1.246
SS-UCFB 207-23	1-7/16	5-21/32	3-35/64	2-7/16	2-3/4	1-11/32	25/64	19/32	2-11/64	1-17/64	1-13/16	3/4	1-3/4	1.689	0.689	5/16	SS-UC207-23	FB207	1.216
SS-UCFB208	40	164	100	72	78	36	12	16	60	41	50	21	51.2	49.2	19	M10	SS-UC208	FB208	1.661
SS-UCFB 208-24	1-1/2	6-15/32	3-15/16	2-27/32	3-1/16	1-13/32	15/32	5/8	2-23/64	1-39/64	1-31/32	53/64	1-1/64	1.937	0.748	3/8	SS-UC208-24	FB208	1.701
SS-UCFB 208-25	1-9/16	6-15/32	3-15/16	2-27/32	3-1/16	1-13/32	15/32	5/8	2-23/64	1-39/64	1-31/32	53/64	1-1/64	1.937	0.748	3/8	SS-UC208-25	FB208	1.671
SS-UCFB209	45	174	106	76	80	38	12	18	65	43	54	22	52.2	49.2	19	M10	SS-UC209	FB209	1.924
SS-UCFB 209-26	1-5/8	6-27/32	4-3/16	3	3-5/32	1-1/2	15/32	23/32	2-9/16	1-11/16	2-1/8	55/64	2-1/16	1.937	0.748	3/8	SS-UC209-26	FB209	2.024
SS-UCFB 209-27	1-11/16	6-27/32	4-3/16	3	3-5/32	1-1/2	15/32	23/32	2-9/16	1-11/16	2-1/8	55/64	2-1/16	1.937	0.748	3/8	SS-UC209-27	FB209	1.984
SS-UCFB 209-28	1-3/4	6-27/32	4-3/16	3	3-5/32	1-1/2	15/32	23/32	2-9/16	1-11/16	2-1/8	55/64	2-1/16	1.937	0.748	3/8	SS-UC209-28	FB209	1.944
SS-UCFB210	50	184	112	82	86	40	12	18	68	46	58	22	54.6	51.6	19	M10	SS-UC210	FB210	2.212
SS-UCFB 210-29	1-13/16	7-1/4	4-13/32	3-7/32	3-3/8	1-37/64	15/32	23/32	2-43/64	1-13/16	2-9/32	55/64	2-5/32	2.0315	0.748	3/8	SS-UC210-29	FB210	2.332
SS-UCFB 210-30	1-7/8	7-1/4	4-13/32	3-7/32	3-3/8	1-37/64	15/32	23/32	2-43/64	1-13/16	2-9/32	55/64	2-5/32	2.0315	0.748	3/8	SS-UC210-30	FB210	2.282
SS-UCFB 210-31	1-15/16	7-1/4	4-13/32	3-7/32	3-3/8	1-37/64	15/32	23/32	2-43/64	1-13/16	2-9/32	55/64	2-5/32	2.0315	0.748	3/8	SS-UC210-31	FB210	2.232
SS-UCFB 210-32	2	7-1/4	4-13/32	3-7/32	3-3/8	1-37/64	15/32	23/32	2-43/64	1-13/16	2-9/32	55/64	2-5/32	2.0315	0.748	3/8	SS-UC210-32	FB210	2.192
SS-UCFB211	55	207	130	86	90	43	14	18	78	50	62	25	58.4	55.6	22.2	M12	SS-UC211	FB211	3.095
SS-UCFB 211-32	2	8-5/32	5-1/8	3-25/64	3-35/64	1-11/16	35/64	45/64	3-5/64	1-31/32	2-7/16	63/64	2-5/16	2.189	0.874	7/16	SS-UC211-32	FB211	3.245
SS-UCFB 211-33	2-1/16	8-5/32	5-1/8	3-25/64	3-35/64	1-11/16	35/64	45/64	3-5/64	1-31/32	2-7/16	63/64	2-5/16	2.189	0.874	7/16	SS-UC211-33	FB211	3.185
SS-UCFB 211-34	2-1/8	8-5/32	5-1/8	3-25/64	3-35/64	1-11/16	35/64	45/64	3-5/64	1-31/32	2-7/16	63/64	2-5/16	2.189	0.874	7/16	SS-UC211-34	FB211	3.145
SS-UCFB 211-35	2-3/16	8-5/32	5-1/8	3-25/64	3-35/64	1-11/16	35/64	45/64	3-5/64	1-31/32	2-7/16	63/64	2-5/16	2.189	0.874	7/16	SS-UC211-35	FB211	3.075
SS-UCFB212	60	223	140	90	94	48	14	18	84	55	66	29	68.7	65.1	25.4	M12	SS-UC212	FB212	3.869
SS-UCFB 212-36	2-1/4	8-25/32	5-1/2	3-35/64	3-45/64	1-7/8	35/64	45/64	3-5/16	2-11/64	2-19/32	1-9/64	2-23/32	2.563	1	7/16	SS-UC212-36	FB212	3.999
SS-UCFB 212-37	2-5/16	8-25/32	5-1/2	3-35/64	3-45/64	1-7/8	35/64	45/64	3-5/16	2-11/64	2-19/32	1-9/64	2-23/32	2.563	1	7/16	SS-UC212-37	FB212	3.919
SS-UCFB 212-38	2-3/8	8-25/32	5-1/2	3-35/64	3-45/64	1-7/8	35/64	45/64	3-5/16	2-11/64	2-19/32	1-9/64	2-23/32	2.563	1	7/16	SS-UC212-38	FB212	3.849
SS-UCFB 212-39	2-7/16	8-25/32	5-1/2	3-35/64	3-45/64	1-7/8	35/64	45/64	3-5/16	2-11/64	2-19/32	1-9/64	2-23/32	2.563	1	7/16	SS-UC212-39	FB212	3.779
SS-UCFB213	65	244	155	94	100	50	14	20	92	60	70	30	69.7	65.1	25.4	M12	SS-UC213	FB213	4.968
SS-UCFB 213-40	2-1/2	9-39/64	6-7/64	3-45/64	3-15/16	1-31/32	35/64	25/32	3-5/8	2-23/64	2-3/4	1-3/16	2-3/4	2.563	1	7/16	SS-UC213-40	FB213	5.058
SS-UCFB 213-41	2-9/16	9-39/64	6-7/64	3-45/64	3-15/16	1-31/32	35/64	25/32	3-5/8	2-23/64	2-3/4	1-3/16	2-3/4	2.563	1	7/16	SS-UC213-41	FB213	4.968

Características:

Estructura compacta, sellado perfecto y conveniente instalación y desmontaje, es universal e intercambiable, tiene un rango moderado de autoalineación.

Aplicaciones en las siguientes industrias:

Rodamientos utilizados en textil, agricultura, comida, teñido y acabado, plástico, construcción, minería, ingeniería, equipos de química y otras industrias.
