Chumaceras en acero inoxidable

Las chumaceras, las chumaceras de brida, los soportes de rodamientos y las chumaceras tensoras constan de una carcasa con un rodamiento montado en ella. Están disponibles en una variedad de materiales, configuraciones de montaje y diversas características de los rodamientos. Cada unidad de rodamiento, incluidos los rodamientos de inserción de la serie UC, SA, SB ER montados

  • Parámetro
  • Características
  • Descargar
  • Vídeo

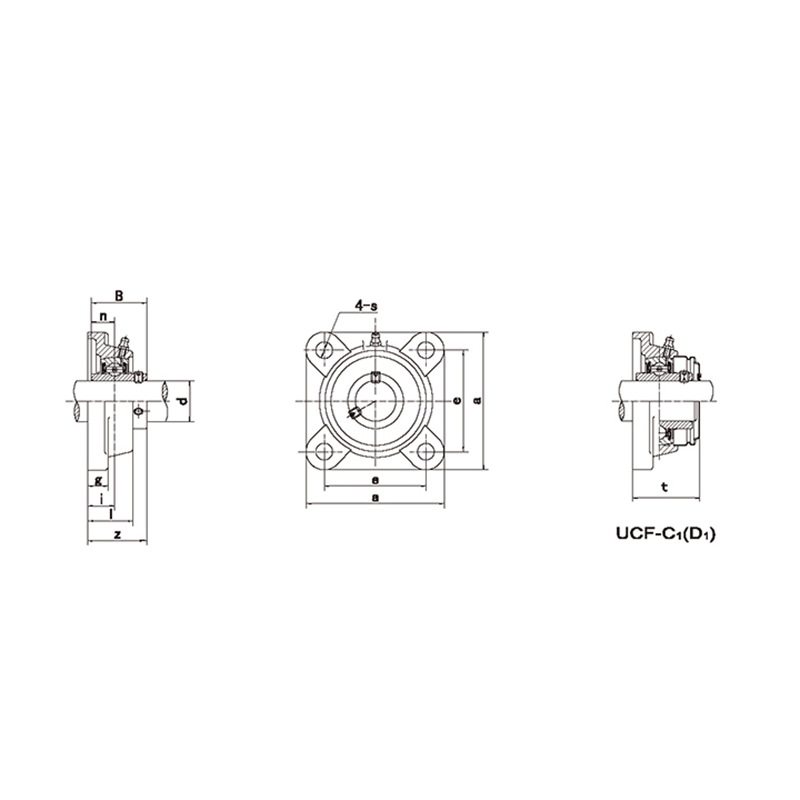

Numero de unidad Dimensiones ( mm/in. ) Tamaño del perno mm/in. Rodamiento No. Cubierta No. Peso (kg)
d a e i g l s t z B n
SS-UCF 201 12 86 64 15 12 25.5 12 33.3 37.5 31 12.7 M10 SS-UC201 F201 0.59
SS-UCF 201-8 1/2 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1-31/64 1.2205 0.5 3/8 SS-UC201-8 F201 0.58
SS-UCF 202 15 86 64 15 12 25.5 12 33.3 37.5 31 12.7 M10 SS-UC202 F202 0.58
SS-UCF 202-9 9/16 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1-31/64 1.2205 0.5 3/8 SS-UC202-9 F202 0.58
SS-UCF 202-10 5/8 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1-31/64 1.2205 0.5 3/8 SS-UC202-10 F202 0.58
SS-UCF 203 17 86 64 15 12 25.5 12 33.3 37.5 31 12.7 M10 SS-UC203 F203 0.57
SS-UCF 203-11 11/16 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1-31/64 1.2205 0.5 3/8 SS-UC203-11 F203 0.56
SS-UCF 204 20 86 64 15 12 25.5 12 33.3 37.5 31 12.7 M10 SS-UC204 F204 0.55
SS-UCF 204-12 3/4 3-3/8 2-33/64 19/32 15/32 1 15/32 1-5/16 1-31/64 1.2205 0.5 3/8 SS-UC204-12 F204 0.55
SS-UCF 205 25 95 70 16 14 27 12 35.8 40 34.1 14.3 M10 SS-UC205 F205 0.73
SS-UCF 205-13 13/16 3-3/4 2-3/4 5/8 35/64 1-1/16 15/32 1-13/32 1-9/16 1.3425 0.563 3/8 SS-UC205-13 F205 0.77
SS-UCF 205-14 7/8 3-3/4 2-3/4 5/8 35/64 1-1/16 15/32 1-13/32 1-9/16 1.3425 0.563 3/8 SS-UC205-14 F205 0.76
SS-UCF 205-15 15/16 3-3/4 2-3/4 5/8 35/64 1-1/16 15/32 1-13/32 1-9/16 1.3425 0.563 3/8 SS-UC205-15 F205 0.74
SS-UCF 205-16 1 3-3/4 2-3/4 5/8 35/64 1-1/16 15/32 1-13/32 1-9/16 1.3425 0.563 3/8 SS-UC205-16 F205 0.73
SS-UCF 206 30 108 83 18 14 31 12 40.2 44.5 38.1 15.9 M10 SS-UC206 F206 1.02
SS-UCF 206-17 1-1/16 4-1/4 3-17/64 45/64 35/64 1-7/32 15/32 1-19/32 1-3/4 1.5 0.626 3/8 SS-UC206-17 F206 1.03
SS-UCF 206-18 1-1/8 4-1/4 3-17/64 45/64 35/64 1-7/32 15/32 1-19/32 1-3/4 1.5 0.626 3/8 SS-UC206-18 F206 1.04
SS-UCF 206-19 1-3/16 4-1/4 3-17/64 45/64 35/64 1-7/32 15/32 1-19/32 1-3/4 1.5 0.626 3/8 SS-UC206-19 F206 1.02
SS-UCF 206-20 1-1/4 4-1/4 3-17/64 45/64 35/64 1-7/32 15/32 1-19/32 1-3/4 1.5 0.626 3/8 SS-UC206-20 F206 1.01
SS-UCF 207 35 117 92 19 16 34 14 44.4 48.5 42.9 17.5 M12 SS-UC207 F207 1.33
SS-UCF 207-20 1-1/4 4-39/64 3-5/8 3/4 5/8 1-11/32 35/64 1-3/4 1-29/32 1.689 0.689 7/16 SS-UC207-20 F207 1.4
SS-UCF 207-21 1-5/16 4-39/64 3-5/8 3/4 5/8 1-11/32 35/64 1-3/4 1-29/32 1.689 0.689 7/16 SS-UC207-21 F207 1.37
SS-UCF 207-22 1-3/8 4-39/64 3-5/8 3/4 5/8 1-11/32 35/64 1-3/4 1-29/32 1.689 0.689 7/16 SS-UC207-22 F207 1.34
SS-UCF 207-23 1-7/16 4-39/64 3-5/8 3/4 5/8 1-11/32 35/64 1-3/4 1-29/32 1.689 0.689 7/16 SS-UC207-23 F207 1.31
SS-UCF 208 40 130 102 21 16 36 16 51.2 55.5 49.2 19 M14 SS-UC208 F208 1.67
SS-UCF 208-24 1-1/12 5-1/8 4-1/64 53/64 5/8 1-27/64 5/8 2-1/64 2-3/16 1.937 0.748 1/2 SS-UC208-24 F208 1.71
SS-UCF 208-25 1-9/16 5-1/8 4-1/64 53/64 5/8 1-27/64 5/8 2-1/64 2-3/16 1.937 0.748 1/2 SS-UC208-25 F208 1.68
SS-UCF 209 45 137 105 22 18 38 16 52.2 56.5 49.2 19 M14 SS-UC209 F209 2
SS-UCF 209-26 1-5/8 5-13/32 4-9/64 55/64 23/32 1-1/2 5/8 2-1/16 2-7/32 1.937 0.748 1/2 SS-UC209-26 F209 2.1
SS-UCF 209-27 1-11/16 5-13/32 4-9/64 55/64 23/32 1-1/2 5/8 2-1/16 2-7/32 1.937 0.748 1/2 SS-UC209-27 F209 2.06
SS-UCF 209-28 1-3/4 5-13/32 4-9/64 55/64 23/32 1-1/2 5/8 2-1/16 2-7/32 1.937 0.748 1/2 SS-UC209-28 F209 2.02
SS-UCF 210 50 143 111 22 18 40 16 54.6 59.5 51.6 19 M14 SS-UC210 F210 2.32
SS-UCF 210-29 1-13/16 5-5/8 4-3/8 55/64 23/32 1-9/16 5/8 2-5/32 2-11/32 2.0315 0.748 1/2 SS-UC210-29 F210 2.44
SS-UCF 210-30 1-7/8 5-5/8 4-3/8 55/64 23/32 1-9/16 5/8 2-5/32 2-11/32 2.0315 0.748 1/2 SS-UC210-30 F210 2.39
SS-UCF 210-31 1-15/16 5-5/8 4-3/8 55/64 23/32 1-9/16 5/8 2-5/32 2-11/32 2.0315 0.748 1/2 SS-UC210-31 F210 2.34
SS-UCF 210-32 2 5-5/8 4-3/8 55/64 23/32 1-9/16 5/8 2-5/32 2-11/32 2.0315 0.748 1/2 SS-UC210-32 F210 2.3
SS-UCF 211 55 162 130 25 20 43 19 58.4 63 55.6 22.2 M16 SS-UC211 F211 3.12
SS-UCF 211-32 2 6-3/8 5-1/8 63/64 25/32 1-11/16 3/4 2-5/16 2-31/64 2.189 0.874 5/8 SS-UC211-32 F211 3.27
SS-UCF 211-33 2-1/16 6-3/8 5-1/8 63/64 25/32 1-11/16 3/4 2-5/16 2-31/64 2.189 0.874 5/8 SS-UC211-33 F211 3.21
SS-UCF 211-34 2-1/8 6-3/8 5-1/8 63/64 25/32 1-11/16 3/4 2-5/16 2-31/64 2.189 0.874 5/8 SS-UC211-34 F211 3.17
SS-UCF 211-35 2-3/16 6-3/8 5-1/8 63/64 25/32 1-11/16 3/4 2-5/16 2-31/64 2.189 0.874 5/8 SS-UC211-35 F211 3.1
SS-UCF 212 60 175 143 29 20 48 19 68.7 73.5 65.1 25.4 M16 SS-UC212 F212 3.95
SS-UCF 212-36 2-1/4 6-57/64 5-5/8 1-9/64 25/32 1-57/64 3/4 2-45/64 2-57/64 2.563 1 5/8 SS-UC212-36 F212 4.08
SS-UCF 212-37 2-5/16 6-57/64 5-5/8 1-9/64 25/32 1-57/64 3/4 2-45/64 2-57/64 2.563 1 5/8 SS-UC212-37 F212 4
SS-UCF 212-38 2-3/8 6-57/64 5-5/8 1-9/64 25/32 1-57/64 3/4 2-45/64 2-57/64 2.563 1 5/8 SS-UC212-38 F212 3.93
SS-UCF 212-39 2-7/16 6-57/64 5-5/8 1-9/64 25/32 1-57/64 3/4 2-45/64 2-57/64 2.563 1 5/8 SS-UC212-39 F212 3.86
SS-UCF 213 65 187 149 30 22 50 19 69.7 74.5 65.1 25.4 M16 SS-UC213 F213 4.81
SS-UCF 213-40 2-1/2 7-23/64 5-55/64 1-3/16 55/64 1-31/32 3/4 2-3/4 2-15/16 2.563 1 5/8 SS-UC213-40 F213 4.9
SS-UCF 213-41 2-9/16 7-23/64 5-55/64 1-3/16 55/64 1-31/32 3/4 2-3/4 2-15/16 2.563 1 5/8 SS-UC213-41 F213 4.81
SS-UCF 214 70 193 152 31 22 54 19 75.4 81.5 74.6 30.2 M16 SS-UC214 F214 5.42
SS-UCF 214-42 2-5/8 7-19/32 5-63/64 1-7/32 55/64 2-1/8 3/4 2-31/32 3-13/64 2.937 1.189 5/8 SS-UC214-42 F214 5.63
SS-UCF 214-43 2-11/16 7-19/32 5-63/64 1-7/32 55/64 2-1/8 3/4 2-31/32 3-13/64 2.937 1.189 5/8 SS-UC214-43 F214 5.53
SS-UCF 214-44 2-3/4 7-19/32 5-63/64 1-7/32 55/64 2-1/8 3/4 2-31/32 3-13/64 2.937 1.189 5/8 SS-UC214-44 F214 5.43
SS-UCF 215 75 200 159 34 22 56 19 78.5 83.5 77.8 33.3 M16 SS-UC215 F215 5.94
SS-UCF 215-45 2-13/16 7-7/8 6-17/64 1-11/32 55/64 2-7/32 3/4 3-3/32 3-9/32 3.063 1.311 5/8 SS-UC215-45 F215 5.94
SS-UCF 215-46 2-7/8 7-7/8 6-17/64 1-11/32 55/64 2-7/32 3/4 3-3/32 3-9/32 3.063 1.311 5/8 SS-UC215-46 F215 6.19
SS-UCF 215-47 2-15/16 7-7/8 6-17/64 1-11/32 55/64 2-7/32 3/4 3-3/32 3-9/32 3.063 1.311 5/8 SS-UC215-47 F215 6.08
SS-UCF 215-48 3 7-7/8 6-17/64 1-11/32 55/64 2-7/32 3/4 3-3/32 3-9/32 3.063 1.311 5/8 SS-UC215-48 F215 5.88
SS-UCF 216 80 208 165 34 22 58 23 83.3 88.5 82.6 33.3 M20 SS-UC216 F216 6.94
SS-UCF 216-49 3-1/16 8-3/16 6-1/2 1-11/32 55/64 2-9/32 29/32 3-9/32 3-31/64 3.252 1.311 3/4 SS-UC216-49 F216 7.12
SS-UCF 216-50 3-1/8 8-3/16 6-1/2 1-11/32 55/64 2-9/32 29/32 3-9/32 3-31/64 3.252 1.311 3/4 SS-UC216-50 F216 6.99
SS-UCF 216-51 3-3/16 8-3/16 6-1/2 1-11/32 55/64 2-9/32 29/32 3-9/32 3-31/64 3.252 1.311 3/4 SS-UC216-51 F216 6.86
SS-UCF 217 85 220 175 36 24 63 23 87.6 92.6 85.7 34.1 M20 SS-UC217 F217 8.67
SS-UCF 217-52 3-1/4 8-21/23 6-57/64 1-27/64 15/16 2-15/32 29/32 3-7/16 3-41/64 3.374 1.343 3/4 SS-UC217-52 F217 8.79
SS-UCF 217-53 3-5/16 8-21/23 6-57/64 1-27/64 15/16 2-15/32 29/32 3-7/16 3-41/64 3.374 1.343 3/4 SS-UC217-53 F217 8.75
SS-UCF 217-55 3-7/16 8-21/23 6-57/64 1-27/64 15/16 2-15/32 29/32 3-7/16 3-41/64 3.374 1.343 3/4 SS-UC217-55 F217 8.46
SS-UCF 218 90 235 187 40 24 68 23 96.3 101.5 96 39.7 M20 SS-UC218 F218 10.62
SS-UCF 218-56 3-1/2 9-1/4 7-23/64 1-37/64 15/16 2-11/16 29/32 3-25/32 4 3.7795 1.563 3/4 SS-UC218-56 F218 10.73
Características:

Estructura compacta, sellado perfecto y conveniente instalación y desmontaje, es universal e intercambiable, tiene un rango moderado de autoalineación.

Aplicaciones en las siguientes industrias:

Rodamientos utilizados en textil, agricultura, comida, teñido y acabado, plástico, construcción, minería, ingeniería, equipos de química y otras industrias.
