Las chumaceras, las chumaceras de brida, los soportes de rodamientos y las chumaceras tensoras constan de una carcasa con un rodamiento montado en ella. Están disponibles en una variedad de materiales, configuraciones de montaje y diversas características de los rodamientos. Cada unidad de rodamiento, incluidos los rodamientos de inserción de la serie UC, SA, SB ER montados

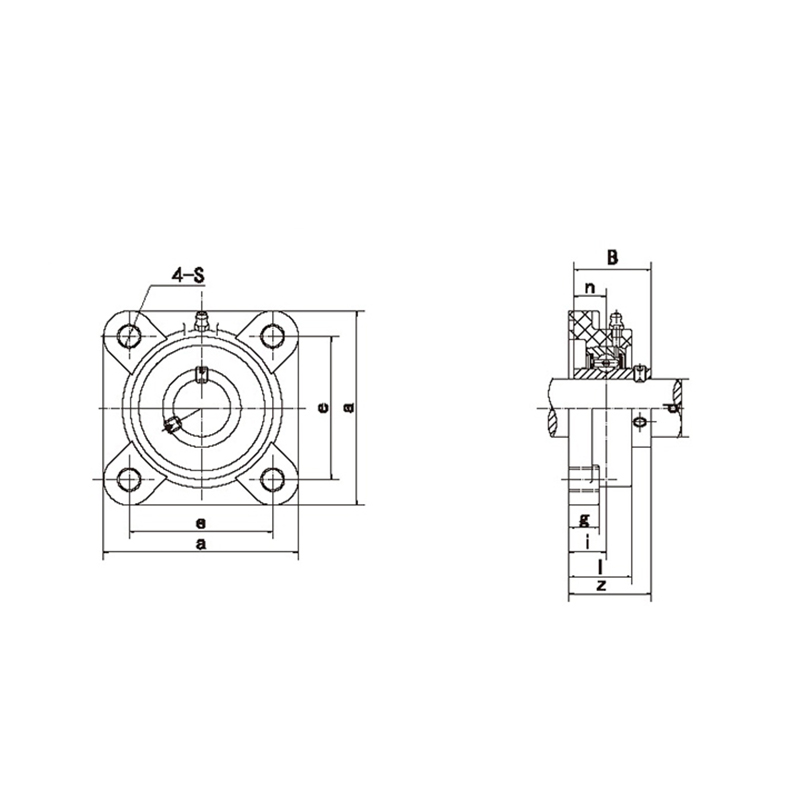

| Numero de unidad | Dimensiones (mm/in.) | Max.Torque | Rodamiento No. | Cubierta No. | Peso (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | a | e | g | l | s | z | i | B | n | Perno D | Nm | ||||
| SS-UCFPL204 | 20 | 86 | 63.5 | 13.4 | 27.8 | 11 | 36.3 | 18 | 31 | 12.7 | M10 | 18 | SS-UC204 | FPL204 | 0.29 |
| SS-UCFPL204 | 3/4 | 3-3/8 | 2-33/64 | 17/32 | 1-3/32 | 7/16 | 1-7/16 | 45/64 | 1.2205 | 0.500 | 3/8 | 18 | SS-UC204 | FPL204 | 0.29 |
| SS-UCFPL205 | 25 | 95 | 70 | 14.3 | 28 | 11 | 36.7 | 17 | 34.1 | 14.3 | M10 | 25 | SS-UC205 | FPL205 | 0.36 |
| SS-UCFPL205 | 13/16; 7/8; 15/16; 1 | 3-3/4 | 2-3/4 | 9/16 | 1-3/32 | 7/16 | 1-7/16 | 43/64 | 1.3425 | 0.563 | 3/8 | 25 | SS-UC205 | FPL205 | 0.36 |
| SS-UCFPL206 | 30 | 107 | 83 | 14.3 | 31.5 | 11 | 41.4 | 19.2 | 38.1 | 15.9 | M10 | 30 | SS-UC206 | FPL206 | 0.5 |
| SS-UCFPL206 | 1-1/16; 1-1/8; 1-3/16; 1-1/4 | 4-7/32 | 3-17/64 | 9/16 | 1-15/64 | 7/16 | 1-5/8 | 3/4 | 1.5 | 0.626 | 3/8 | 30 | SS-UC206 | FPL206 | 0.5 |
| SS-UCFPL207 | 35 | 118 | 92 | 15.5 | 34.8 | 13 | 46.9 | 21.5 | 42.9 | 17.5 | M12 | 35 | SS-UC207 | FPL207 | 0.74 |
| SS-UCFPL207 | 1-1/4; 1-5/16; 1-3/8; 1-7/16 | 4-21/32 | 3-5/8 | 39/64 | 1-3/8 | 33/64 | 1-27/32 | 27/32 | 1.689 | 0.689 | 7/16 | 35 | SS-UC207 | FPL207 | 0.74 |
| SS-UCFPL208 | 40 | 130 | 102 | 17 | 37.5 | 14 | 53.2 | 23 | 49.2 | 19 | M12 | 40 | SS-UC208 | FPL208 | 0.97 |
| SS-UCFPL208 | 1-1/2; 1-9/16 | 5-1/8 | 4-1/64 | 43/64 | 1-15/32 | 35/64 | 2-3/32 | 29/32 | 1.937 | 0.748 | 7/16 | 40 | SS-UC208 | FPL208 | 0.97 |
| SS-UCFPL209 | 45 | 137 | 105 | 19 | 41 | 17 | 54.2 | 24 | 49.2 | 19 | M16 | 45 | SS-UC209 | FPL209 | 1.1 |
| SS-UCFPL209 | 1-5/8; 1-11/16; 1-3/4 | 5-13/32 | 4-9/64 | 3/4 | 1-39/64 | 43/64 | 2-9/64 | 15/16 | 1.937 | 0.748 | 5/8 | 45 | SS-UC209 | FPL209 | 1.1 |
| SS-UCFPL210 | 50 | 143 | 111 | 21 | 43 | 17 | 57.6 | 25 | 51.6 | 19 | M16 | 50 | SS-UC210 | FPL210 | 1.25 |
| SS-UCFPL210 | 1-13/16; 1-7/8; 1-15/16; 2 | 5-5/8 | 4-3/8 | 53/64 | 1-11/16 | 43/64 | 2-17/64 | 63/64 | 2.0315 | 0.748 | 5/8 | 50 | SS-UC210 | FPL210 | 1.25 |
| SS-UCFPL211 | 55 | 162 | 130 | 20 | 43 | 19 | 58.4 | 25 | 55.6 | 22.2 | M16 | 55 | SS-UC211 | FPL211 | 1.4 |
| SS-UCFPL211 | 2; 2-1/16; 2-1/8; 2-3/16 | 6-3/8 | 5-1/8 | 25/32 | 1-11/16 | 3/4 | 2-19/64 | 63/64 | 2.189 | 0.874 | 5/8 | 55 | SS-UC211 | FPL211 | 1.4 |
| SS-UCFPL212 | 60 | 175 | 143 | 20 | 48 | 19 | 68.7 | 29 | 65.1 | 25.4 | M16 | 60 | SS-UC212 | FPL212 | 1.6 |
| SS-UCFPL212 | 2-1/4; 2-5/16; 2-3/8; 2-7/16 | 6-57/64 | 5-5/8 | 25/32 | 1-57/64 | 3/4 | 2-45/64 | 1-9/64 | 2.563 | 1.000 | 5/8 | 60 | SS-UC212 | FPL212 | 1.6 |
Estructura compacta, sellado perfecto y conveniente instalación y desmontaje, es universal e intercambiable, tiene un rango moderado de autoalineación.
Rodamientos utilizados en textil, agricultura, comida, teñido y acabado, plástico, construcción, minería, ingeniería, equipos de química y otras industrias.
