Chumaceras UKT200

Las chumaceras, las chumaceras de brida, los soportes de rodamientos y las chumaceras tensoras constan de una carcasa con un rodamiento montado en ella. Están disponibles en una variedad de materiales, configuraciones de montaje y diversas características de los rodamientos. Cada unidad de rodamiento, incluidos los rodamientos de inserción de la serie UC, SA, SB ER montados

  • Parámetro
  • Características
  • Descargar
  • Vídeo

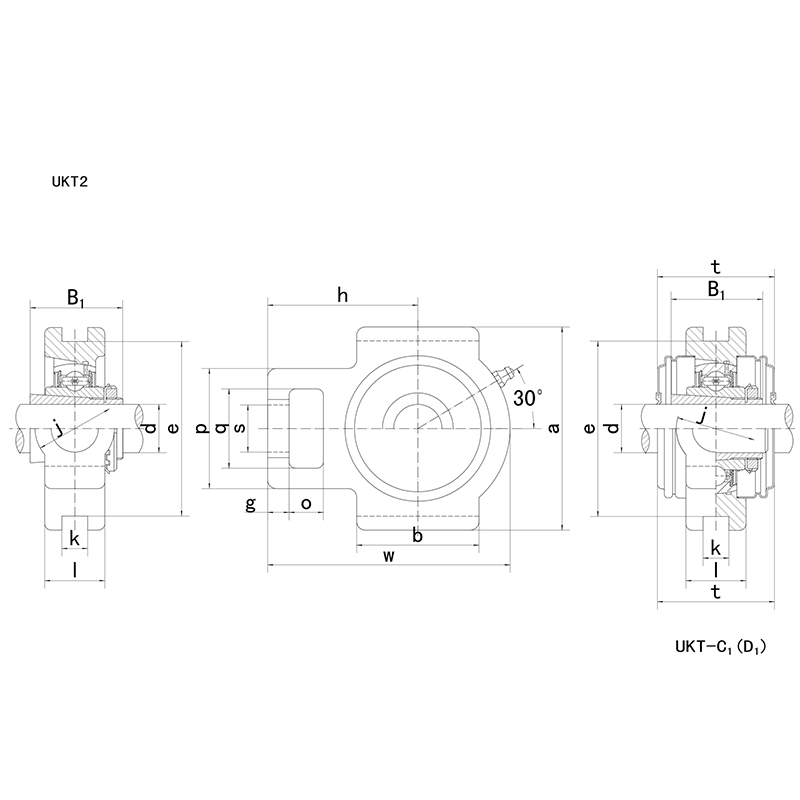

Numero de unidadDimensiones ( mm/in. )Rodamiento No.Cubierta No.Peso (kg)
dogpqsbkeawjlhtB1
UKT205; H2305 20 16 10 51 32 19 51 12 76 89 97 32 24 62 48 35 UK205; H2305 T205 0.86
UKT205; HE2305 3/4 5/8 25/64 2-1/64 1-1/4 3/4 2-1/64 15/32 2-63/64 3-1/2 3-13/16 1-1/4 15/16 2-7/16 1-7/8 1.378 UK205; HE2305 T205 0.86
UKT206; H2306 25 16 10 56 37 22 57 12 89 102 113 37 28 70 53 38 UK206; H2306 T206 1.26
UKT206; HS2306 7/8 5/8 25/64 2-7/32 1-29/64 55/64 2-1/4 15/32 3-1/2 4-1/64 4-29/64 1-29/64 1-3/32 2-3/4 2-3/32 1.496 UK206; HS2306 T206 1.26
UKT206; HE2306 1 5/8 25/64 2-7/32 1-29/64 55/64 2-1/4 15/32 3-1/2 4-1/64 4-29/64 1-29/64 1-3/32 2-3/4 2-3/32 1.496 UK206; HE2306 T206 1.26
UKT207; H2307 30 16 13 64 37 22 64 12 89 102 129 37 30 78 59.5 43 UK207; H2307 T207 2.5
UKT207; HS2307 1-1/8 5/8 33/64 2-33/64 1-29/64 55/64 2-33/64 15/32 3-1/2 4-1/64 5-5/64 1-29/64 1-3/16 3-5/64 2-11/32 1.693 UK207; HS2307 T207 2.5
UKT208; H2308 35 19 16 83 49 29 83 16 102 114 144 49 33 89 69 46 UK208; H2308 T208 2.5
UKT208; HE2308 1-1/4 3/4 5/8 3-17/64 1-15/16 1-9/64 3-17/64 5/8 4-1/64 4-31/64 5-43/64 1-15/16 1-5/16 3-1/2 2-23/32 1.811 UK208; HE2308 T208 2.5
UKT208; HS2308 1-3/8 3/4 5/8 3-17/64 1-15/16 1-9/64 3-17/64 5/8 4-1/64 4-31/64 5-43/64 1-15/16 1-5/16 3-1/2 2-23/32 1.811 UK208; HS2308 T208 2.5
UKT209; H2309 40 19 16 83 49 29 83 16 102 117 144 49 35 87 69 50 UK209; H2309 T209 2.51
UKT209; HA2309 1-7/16 3/4 5/8 3-17/64 1-15/16 1-9/64 3-17/64 5/8 4-1/64 4-39/64 5-43/64 1-15/16 1-3/8 3-27/64 2-23/32 1.969 UK209; HA2309 T209 2.51
UKT209; HE2309 1-1/2 3/4 5/8 3-17/64 1-15/16 1-9/64 3-17/64 5/8 4-1/64 4-39/64 5-43/64 1-15/16 1-3/8 3-27/64 2-23/32 1.969 UK209; HE2309 T209 2.51
UKT209; HS2309 1-5/8 3/4 5/8 3-17/64 1-15/16 1-9/64 3-17/64 5/8 4-1/64 4-39/64 5-43/64 1-15/16 1-3/8 3-27/64 2-23/32 1.969 UK209; HS2309 T209 2.51
UKT210; H2310 45 19 16 83 49 29 86 16 102 117 149 49 37 90 74.5 55 UK210; H2310 T210 2.6
UKT210; HS2310 1-5/8 3/4 5/8 3-17/64 1-15/16 1-9/64 3-25/64 5/8 4-1/64 4-39/64 5-55/64 1-15/16 1-15/32 3-35/64 2-15/16 2.165 UK210; HS2310 T210 2.6
UKT210; HA2310 1-11/16 3/4 5/8 3-17/64 1-15/16 1-9/64 3-25/64 5/8 4-1/64 4-39/64 5-55/64 1-15/16 1-15/32 3-35/64 2-15/16 2.165 UK210; HA2310 T210 2.6
UKT210; HE2310 1-3/4 3/4 5/8 3-17/64 1-15/16 1-9/64 3-25/64 5/8 4-1/64 4-39/64 5-55/64 1-15/16 1-15/32 3-35/64 2-15/16 2.165 UK210; HE2310 T210 2.6
UKT211; H2311 50 25 19 102 64 35 95 22 130 146 171 64 38 106 76 59 UK211; H2311 T211 4.26
UKT211; HS2311 1-7/8 63/64 3/4 4-1/64 2-1/32 1-3/8 3-3/4 55/64 5-1/8 5-3/4 6-47/64 2-33/64 1-1/2 4-11/64 3 2.323 UK211; HS2311 T211 4.26
UKT211; HA2311 1-15/16 63/64 3/4 4-1/64 2-1/32 1-3/8 3-3/4 55/64 5-1/8 5-3/4 6-47/64 2-33/64 1-1/2 4-11/64 3 2.323 UK211; HA2311 T211 4.26
UKT211; HE2311 2 63/64 3/4 4-1/64 2-1/32 1-3/8 3-3/4 55/64 5-1/8 5-3/4 6-47/64 2-33/64 1-1/2 4-11/64 3 2.323 UK211; HE2311 T211 4.26
UKT212; H2312 55 32 19 102 64 35 102 22 130 146 194 64 42 119 89 62 UK212; H2312 T212 5.02
UKT212; HS2312 2-1/8 1-17/64 3/4 4-1/64 2-1/32 1-3/8 4-1/64 55/64 5-1/8 5-3/4 7-41/64 2-33/64 1-21/32 4-11/16 3-1/2 2.441 UK212; HS2312 T212 5.02
UKT213; H2313 60 32 21 111 70 41 121 26 151 167 224 70 44 137 89 65 UK213; H2313 T213 6.56
UKT213; HA2313 2-3/16 1-17/64 53/64 4-3/8 2-3/4 1-39/64 4-49/64 1-1/32 5-15/16 6-37/64 8-13/16 2-3/4 1-23/32 5-25/64 3-1/2 2.559 UK213; HA2313 T213 6.56
UKT213; HE2313 2-1/4 1-17/64 53/64 4-3/8 2-3/4 1-39/64 4-49/64 1-1/32 5-15/16 6-37/64 8-13/16 2-3/4 1-23/32 5-25/64 3-1/2 2.559 UK213; HE2313 T213 6.56
UKT213; HS2313 2-3/8 1-17/64 53/64 4-3/8 2-3/4 1-39/64 4-49/64 1-1/32 5-15/16 6-37/64 8-13/16 2-3/4 1-23/32 5-25/64 3-1/2 2.559 UK213; HS2313 T213 6.56
UKT215; H2315 65 32 21 111 70 41 121 26 151 167 232 70 48 140 99 73 UK215; H2315 T215 7.52
UKT215; HA2315 2-7/16 1-17/64 53/64 4-3/8 2-3/4 1-39/64 4-49/64 1-1/32 5-15/16 6-37/64 9-9/64 2-3/4 1-57/64 5-33/64 3-57/64 2.874 UK215; HA2315 T215 7.52
UKT215; HE2315 2-1/2 1-17/64 53/64 4-3/8 2-3/4 1-39/64 4-49/64 1-1/32 5-15/16 6-37/64 9-9/64 2-3/4 1-57/64 5-33/64 3-57/64 2.874 UK215; HE2315 T215 7.52
UKT216; H2316 70 32 21 111 70 41 121 26 165 184 235 70 51 140 109 78 UK216; H2316 T216 8.56
UKT216; HA2316 2-11/16 1-17/64 53/64 4-3/8 2-3/4 1-39/64 4-49/64 1-1/32 6-1/2 7-1/4 9-1/4 2-3/4 2 5-33/64 4-19/64 3.071 UK216; HA2316 T216 8.56
UKT216; HE2316 2-3/4 1-17/64 53/64 4-3/8 2-3/4 1-39/64 4-49/64 1-1/32 6-1/2 7-1/4 9-1/4 2-3/4 2 5-33/64 4-19/64 3.071 UK216; HE2316 T216 8.56
UKT217; H2317 75 38 29 124 73 48 157 30 173 198 260 73 54 162 113.2 82 UK217; H2317 T217 11.38
UKT217; HA2317 2-15/16 1-1/2 1-9/64 4-7/8 2-7/8 1-57/64 6-3/16 1-3/16 6-13/16 7-51/64 10-15/64 2-7/8 2-1/8 6-3/8 4-29/64 3.288 UK217; HA2317 T217 11.38
UKT217; HE2317 3 1-1/2 1-9/64 4-7/8 2-7/8 1-57/64 6-3/16 1-3/16 6-13/16 7-51/64 10-15/64 2-7/8 2-1/8 6-3/8 4-29/64 3.288 UK217; HE2317 T217 11.38
Características:

Estructura compacta, sellado perfecto y conveniente instalación y desmontaje, es universal e intercambiable, tiene un rango moderado de autoalineación.

Aplicaciones en las siguientes industrias:

Rodamientos utilizados en textil, agricultura, comida, teñido y acabado, plástico, construcción, minería, ingeniería, equipos de química y otras industrias.
